Cantilever Racking

Cantilever

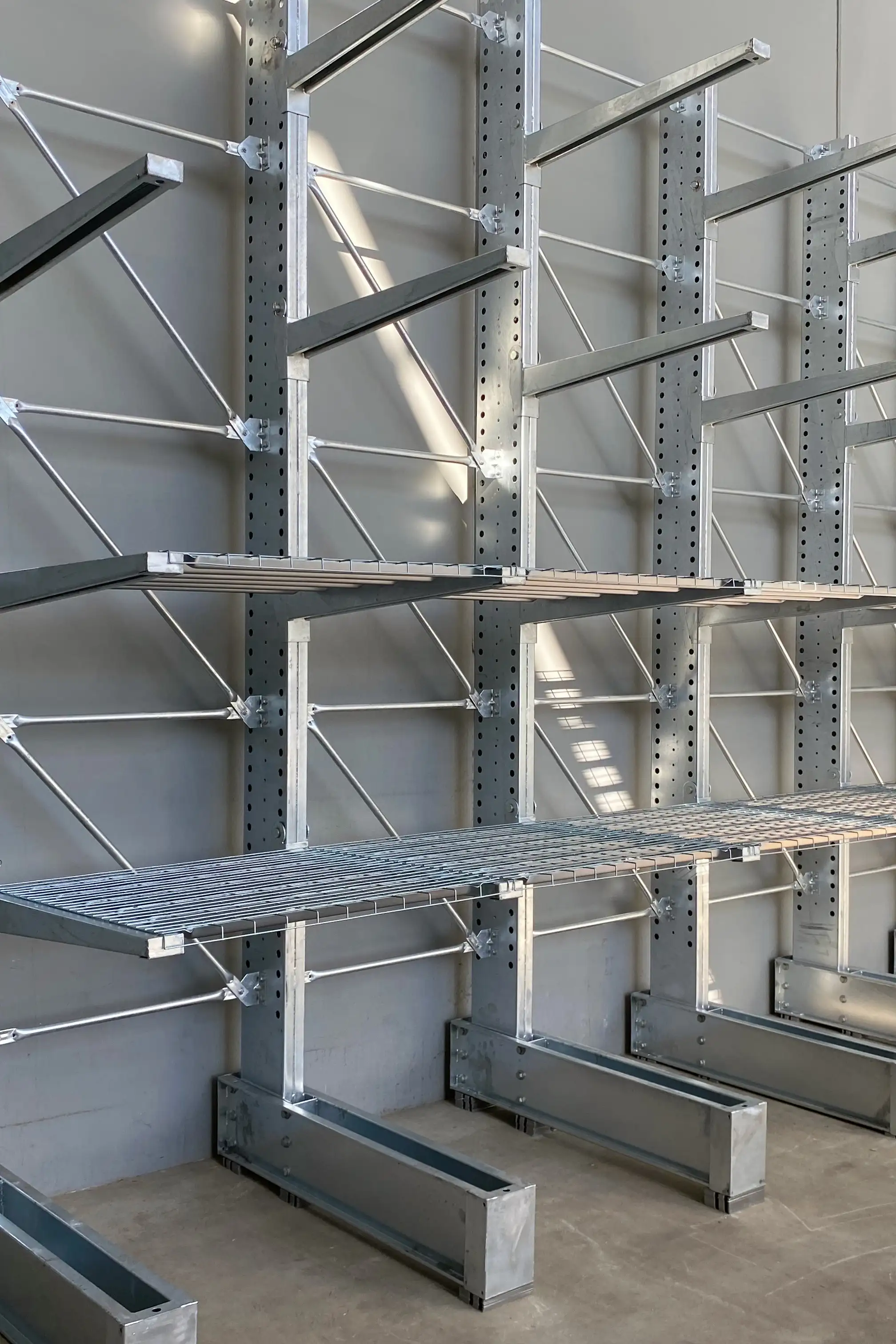

Cantilever racking systems store large, long and non-palletised materials off the ground. APEX offers C200 and C305 options in powder-coated blue and hot-dipped galvanised. Heavy-duty applications can be imported, including C350, C410-A and C410-B. All APEX cantilever racking is designed and manufactured to FEM 10.2.09 standards.

Pallet Racking System

Light Duty C200

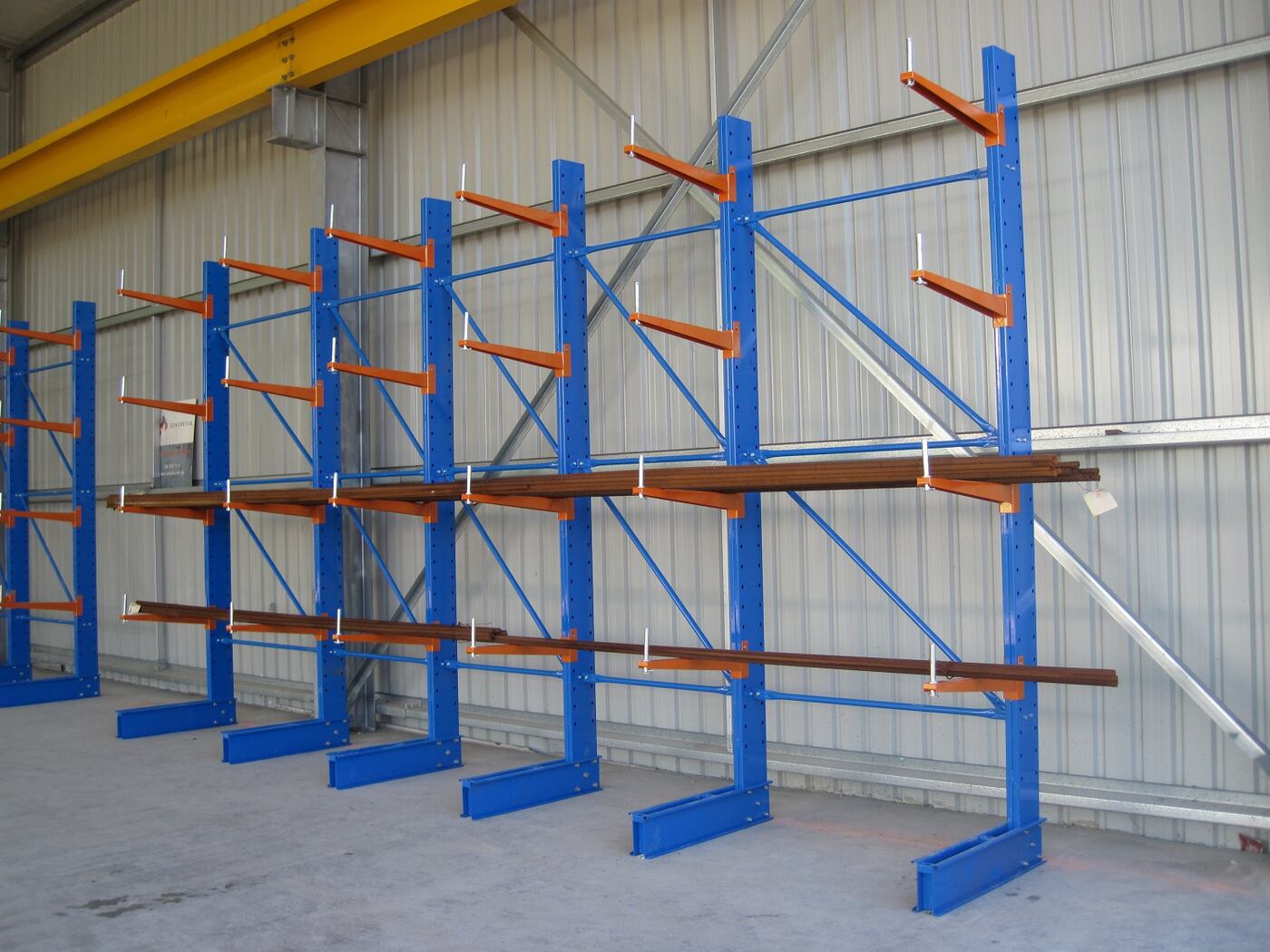

Light duty C200 cantilever systems are ideal for storing long or bulky lightweight loads such as pipe, rigid conduit and timber. It's most commonly used for hand-stacked materials in workshops and warehouses.

Applications & Features :

  • Arm capacity between 250kg to 450kg UDL per arm
  • Shorter heights ideal for small hand load/unload situations
  • Indoor and outdoor applications
Powder coated Hot Dipped Galvanised (HDG)
Column Height 2000mm
2400mm
3000mm
3600mm
4200mm
2000mm
2400mm
3000mm
Arm Length & Maximum arm load capacity 700mm - 450kg UDL each
900mm - 350kg UDL each
1200mm - 250kg UDL each
700mm - 450kg UDL each
900mm - 350kg UDL each
Column Spacing (Bracing) 900mm
1200mm
1500mm
1800mm
900mm
1200mm
1500mm
1800mm
Pallet Racking System

Medium Duty C305

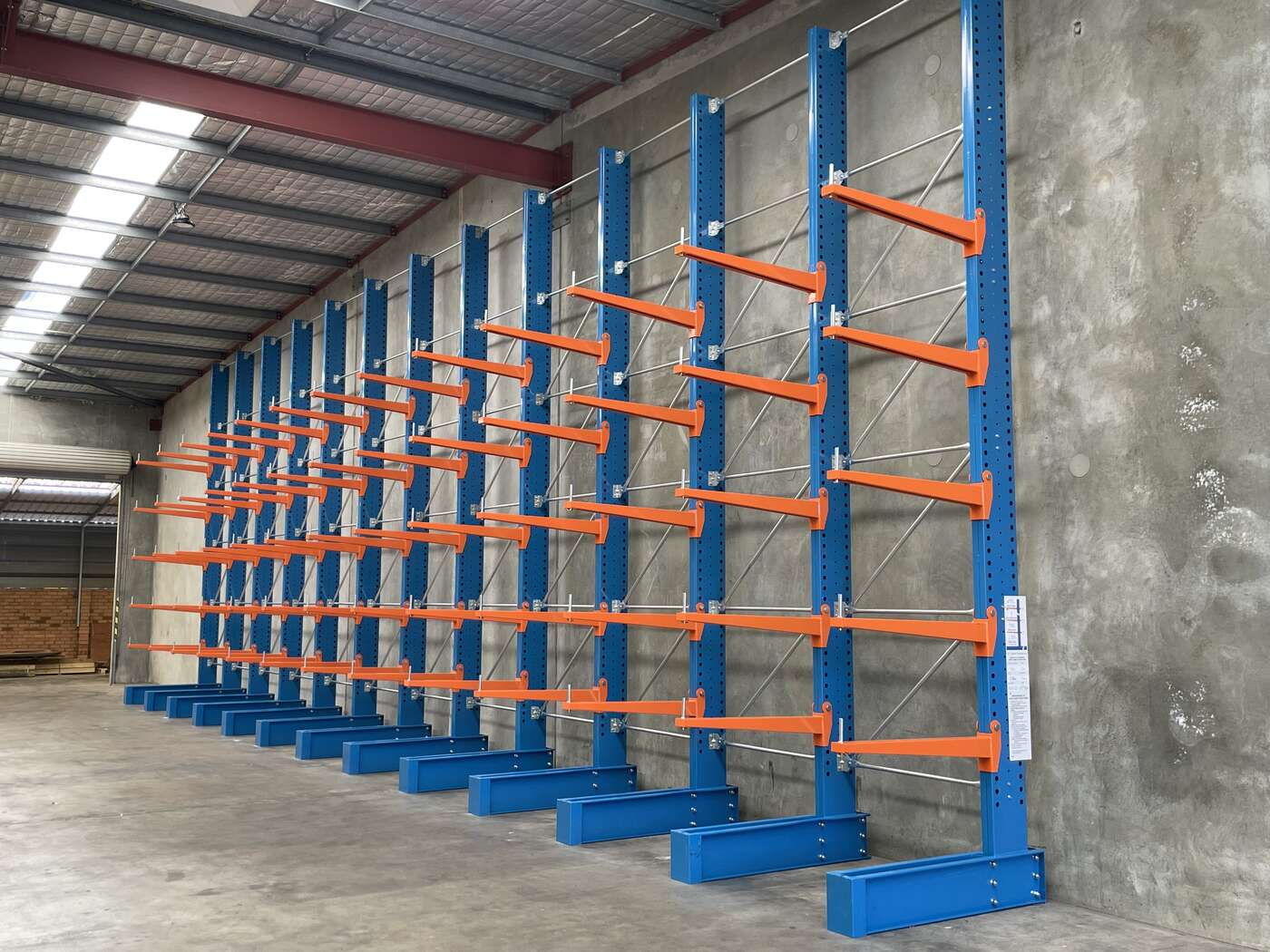

C305 medium duty cantilever racking systems are designed for materials like metal, wood, tubing, rigid conduit and extrusions that can’t be moved by hand and require equipment, such as forklifts. Arms usually have a rated capacity of 1000kg UDL, but this may vary depending on arm length and racking configuration.

Applications & Features :

  • Available in powder-coated finish for indoor applications and hot-dipped galvanised (HDG) for outdoors
  • Arm capacity between 1,000kg to 1,300kg UDL per arm
  • Column capacity between 3,500kg to 4,948kg
  • Indoor and outdoor applications
Powder coated Hot Dipped Galvanised (HDG)
Column Height 3048mm
3658mm
4267mm
4877mm
5486mm
6096mm
2438mm
3048mm
3658mm
4267mm
4877mm
5486mm
6096mm
Arm Length & Maximum arm load capacity 900mm - 1,300kg UDL each
1200mm - 1,000kg UDL each
1500mm - 1,000kg UDL each
900mm - 1,300kg UDL each
1200mm - 1,000kg UDL each
1500mm - 1,000kg UDL each
Column Spacing (Bracing) 900mm
1200mm
1500mm
1800mm
2100mm
900mm
1200mm
1500mm
1800mm
