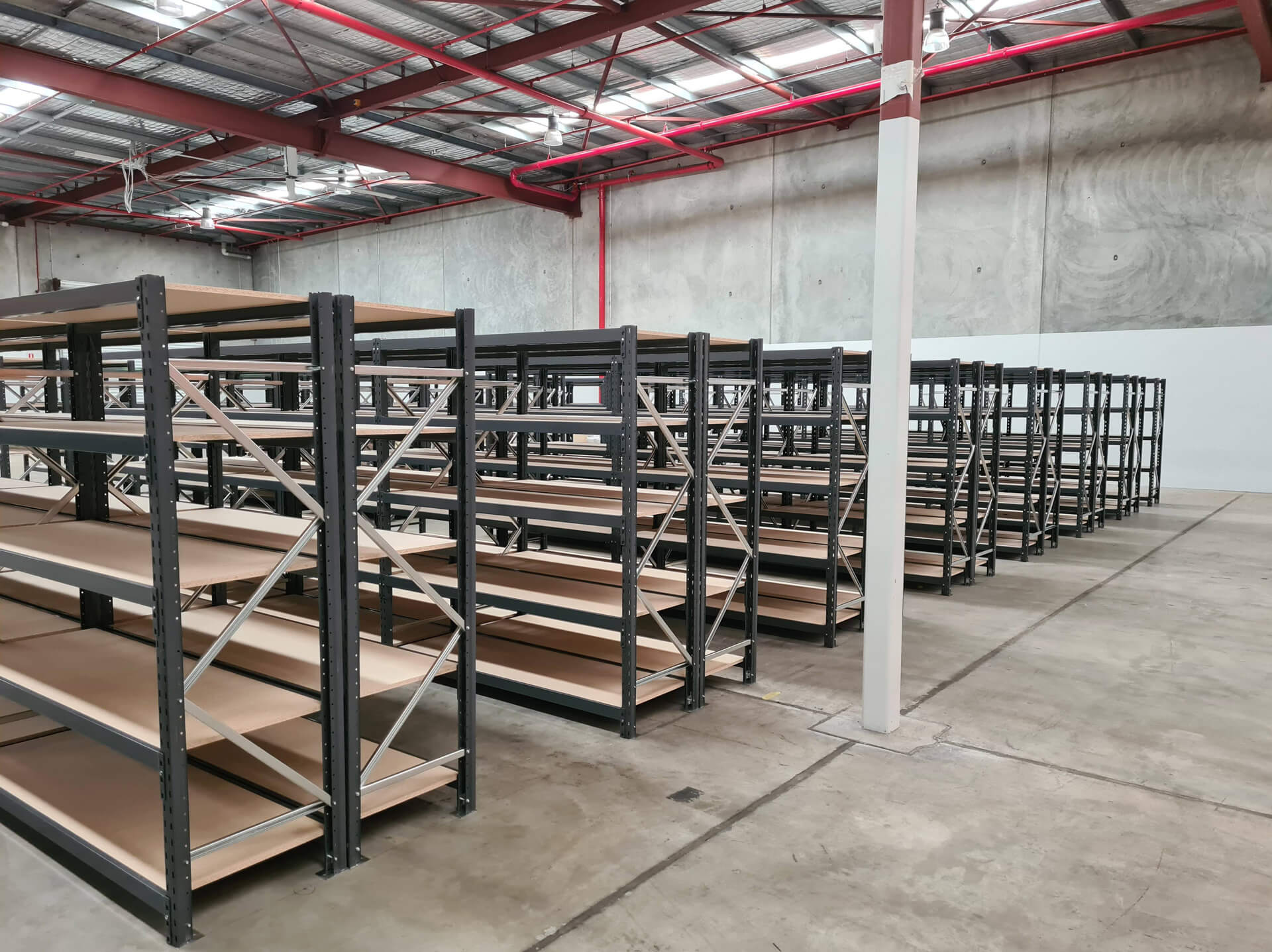

Longspan Shelving

Longspan Shelving is designed for small to medium items. It's highly customisable, with the choice of multiple lengths and heights, as well as shelf materials such as particle board, mesh decks and galvanised panels.

Product Specification

Frame Height Frame Depth
900mm 460 / 600 / 900 / 1200mm
1000mm 460 / 600 / 900 / 1200mm
2000mm 460 / 600 / 900 / 1200mm
2400mm 460 / 600 / 900 / 1200mm
3000mm 460 / 600 / 900 / 1200mm
4000mm 600 / 900 / 1200mm
Product Specification
Beam Length External Bay Length Beam Capacity
900mm 1020mm 890kg
1200mm 1320mm 660kg
1500mm 1620mm 530kg
1800mm 1920mm 450kg
2100mm 2220mm 385kg
2400mm 2520mm 300kg
Product Specification

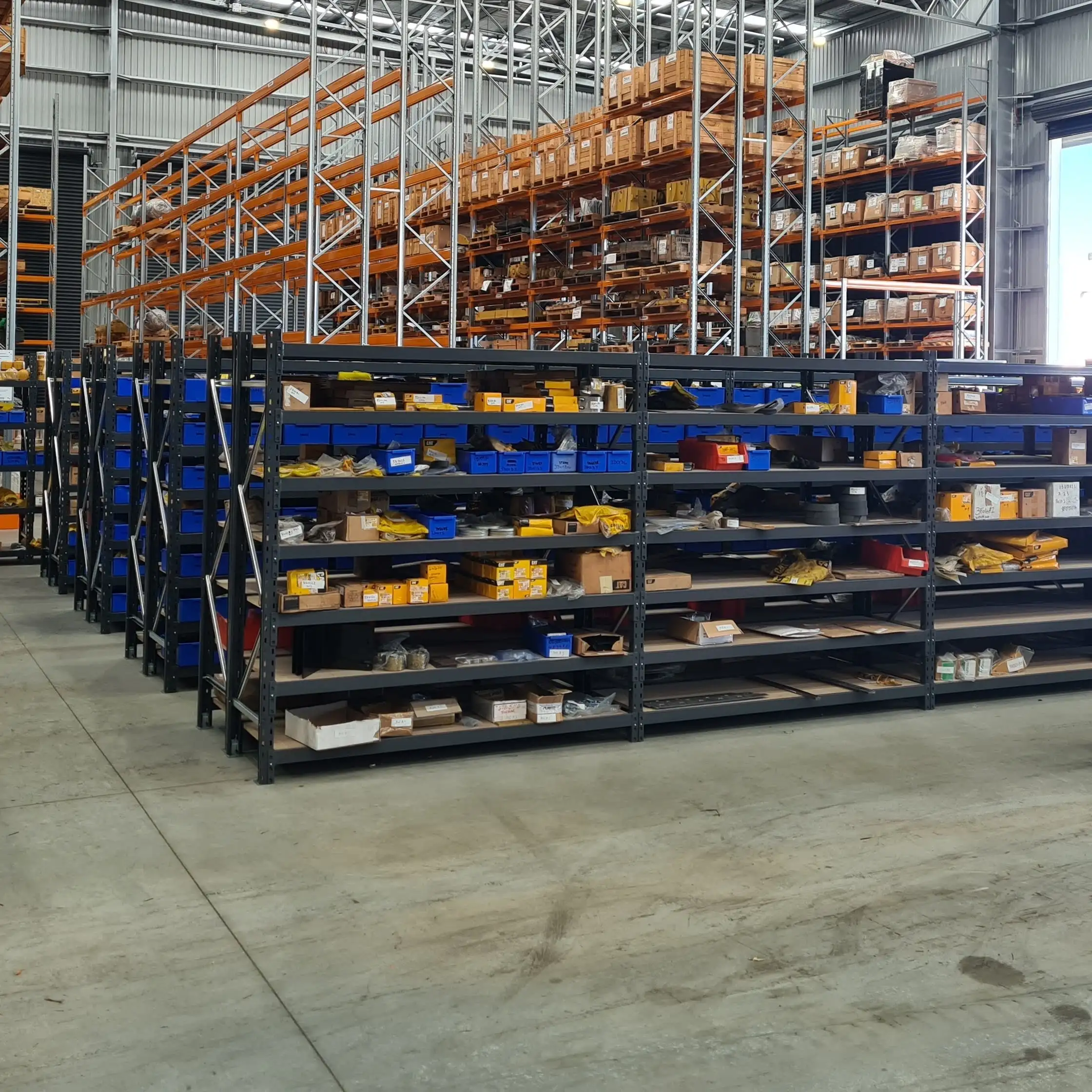

Pallet Racking System

Longspan Shelving

  • Retail stores
  • Garages
  • Shipping containers
  • Workshops and storerooms
  • Distribution centres and so much more
